Polypropylene (PP) Wire Mesh Mist Eliminator Demister Pads

We supply polypropylene (PP) mist eliminator corrugated knitted wire mesh for making gas liquid filter or demisters.

Benefits of Using Polypropylene (PP) mesh mist eliminator:
PP is a kind of thermoplastics, knitted pp mesh demister is constructed from multi layer mesh media which functions well at economic cost;
The non-metal mist filter pad provides dense mat through which gas flows and liquid entrainment is trapped through impingement or coalescence, hence, it can prevent the mists or droplets from passing downstream, achieving liquid-gas separation;
PP mesh filter has good resistance to oxidation and corrosion resistance.

Material : Polypropylene ( Simplified as PP)
Shape: Round, Square, Oblong, etc.
Wire Diameter : 0.08 to 0.50mm, while 0.2mm-0.25mm are the most common wire diameter specifications.
Width : 40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc.
Features: Simple structure, small size, light weight, porosity, pressure drop contact with large surfacearea, in addition to foam separation efficiency, light weight,easy maintenance, protection of the environment, reduction of air pollution and long life.

Application

Polypropylene knitted mesh and PP mist eliminators are mainly used in Boilers, Evaporators, Gas-liquid, Solid-liquid separation,Vaccum towers,Absorbers, Lube towers, Elimination of entrainment, Elimination of toxic air pollutants, Used as gaskets in cable, automobile and computer industry, Desalination plants.



Product Types

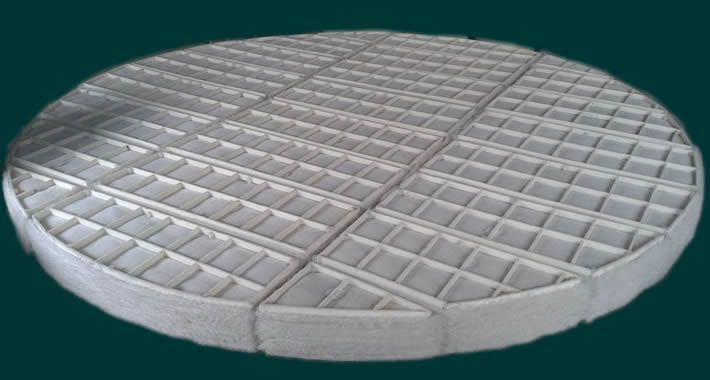

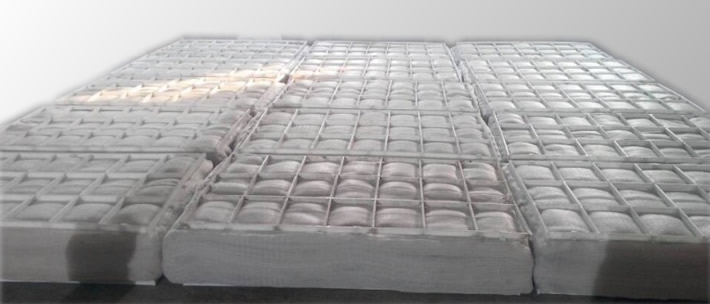

Plastic / PP Mist Eliminator Demister Pad
Material: PP, PE, FRP, TEFLON
Specification:
Demister diameter 2900 mm
Structure: 3 segmented
The mist eliminator operating condition: Gas Volume 56845 M3/hr(CMH), 40-60 C degree, 100-200 Pa, Fume/mist capture, Wet Scrubber (FGD)
Demister HEIGHT: 300 mm, (150 mm x 2)

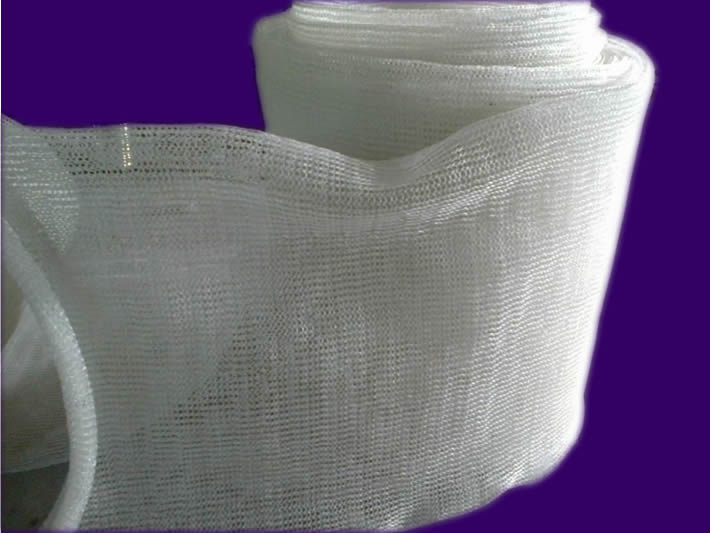

Knitted Polypropylene Mesh

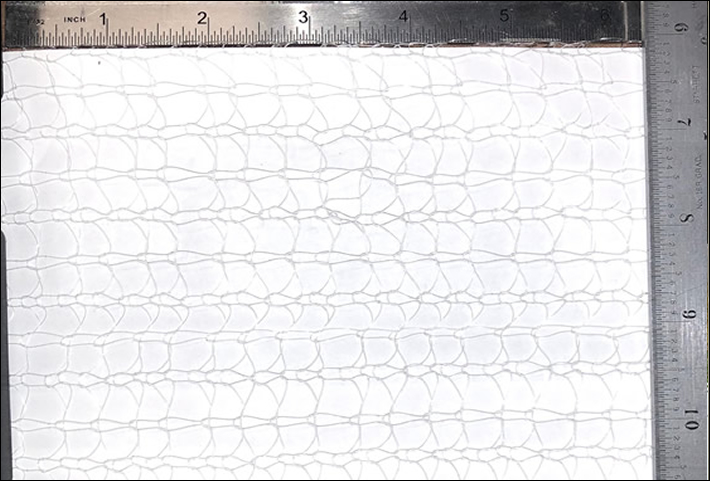

Polypropylene / PP knit mesh in 6"” width

PP knitted mesh



Vane Pack Demisters in PP (polypropylene) or FRP (fiberglass reinforced plastic) for Mist Eliminators
Resistant to steam of NH3 and H2SO4 with Temperature 60 degree C

- For Horizontal Gas Flow type

- Size : 5050mmW(vertical) x 6200mm(horizontal) divided 6 segment.
- Height of Streamline required 380mm
- Distant between vanes : 25mm
- Material : FRP / PP
- Vane without hooks
- Application: Grease Filter / Mist Remover / Pre-Filter

PP vane pack demister pad mist eliminator



Knitted PP Mesh Filters

For gas scrubbers / washing equipment, mist eliminators
Material: Knitted PP netting

PP Knitted Mesh Filter Devices

PP mesh in tube form:



Specifications

Standard Type:

Wire Diameter dw(mm) Width Tolerance (mm) Density (kg/m3) Surface Area (m2/m3) Void Fraction
Flat Wire Round Wire 20 150 Flat Wire Round Wire 0.981
0.1*0.4 0.23 475 320

High Penetration Type:

Wire Diameter dw(mm) Width Tolerance (mm) Density (kg/m3) Surface Area (m2/m3) Void Fraction
Flat Wire Round Wire 20 98 Flat Wire Round Wire 0.9875
0.1*0.4 0.23 313 217

High Efficiency Type:

Wire Diameter dw(mm) Width Tolerance (mm) Density (kg/m3) Surface Area (m2/m3) Void Fraction
Flat Wire Round Wire 20 182 Flat Wire Round Wire 0.977
0.1*0.28 0.19 626 484



Also supply: Mist eliminators with metal knitted mesh as screening or filtering media.
