Knitted Wire Mesh Washers - Stainless Steel and Titanium Mesh Filter Washers

We supply knitted wire mesh washers to UK, Germany, India and other countries.

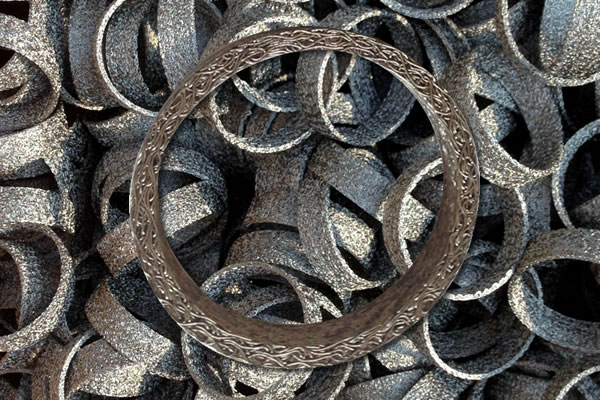

Titanium Knitted Wire Mesh Washers

Open cell knitted titanium mesh washer - Foam Lance Mesh filter
Diameter 20mm, thickness 2.5mm
Flat-type mesh surface and pressed into a corrugated bellows-type network surface
Width of the corrugations and the depth varies to meet specific uses.



Knitted Wire Mesh Washers AISI 304

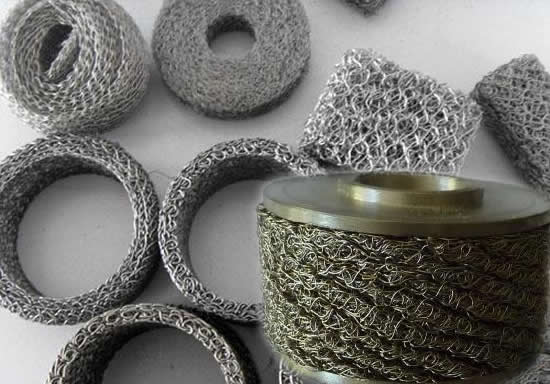

Compressed Knitted Wire Mesh Grounding Washers with the following dimensions, for Germany
Part name: DG-Ring
Material: 1.4301 (X5CrNi18-10) / AISI 304 /
Wire thickness: 0.16 mm
Outer diameter: 19.5 mm +/-0,3 mm
Inner diameter: 11,3 mm +0,4/-0 mm
Heigth: 5,5 mm +/-0,3 mm
Density: 1,8g/cm³



Knitted Mesh Washers For India Filter manufacturers

Material: SS304 Knitted mesh
Outer diameter 15 mm
Inner diameter 6 mm
Thickness 3 mm
